    So now that we have some idea of what MTF is, how it is measured, and how it relates contrast to resolution, we can explore the many different ways MTF data is used.

    Usually, when MTF is measured (or calculated) we end up with a lot of measurement points. So we produce different charts depending on which relationships we want to explore.

    I've created a few "representative" charts. Please note that I made up the values and the curves in the charts (they don't pertain to any real lens). However the overall shape of the curves might be similar to what you'd see in a real chart.

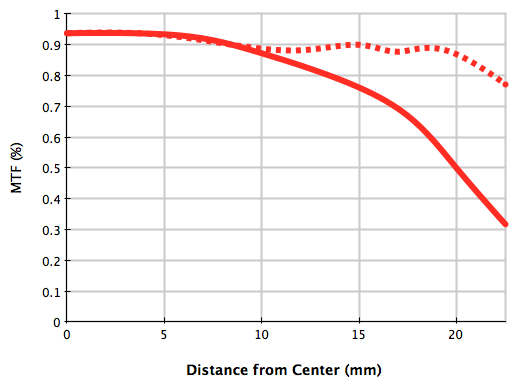

    Here's the most common type of chart, plotting MTF vs. Distance from the lens center:

    Figure 1: MTF vs. Distance

    This kind of MTF chart is useful to evaluate the overall performance and consistency (uniformity) of a lens. I think by now we're all familiar with this chart. I don't want this post to be about the mechanics of chart-reading, but the important point to note is with this type of chart we are analyzing MTF across the physical surface of the lens, from center to edge.

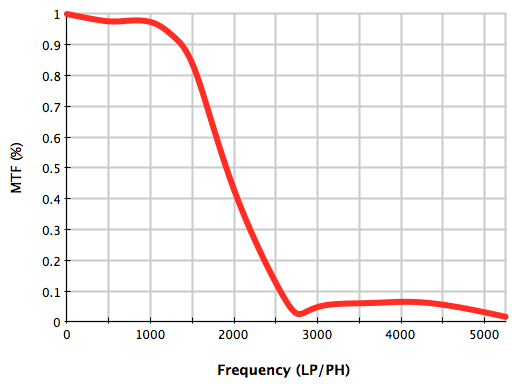

    Here's another very common type of chart, plotting MTF vs. Frequency:

    Figure 2: MTF vs. Frequency

    This chart is very different from the first one. We are still measuring MTF (as can be seen on the Y-axis). But we are no longer measuring from center to edge. Rather, we are measuring the maximum resolution of the lens, at a particular location (usually center).

    E.g., from this type of chart, you can tell at 50% contrast (MTF 50) this fictional lens has a resolution of around 1900 LP/PH.

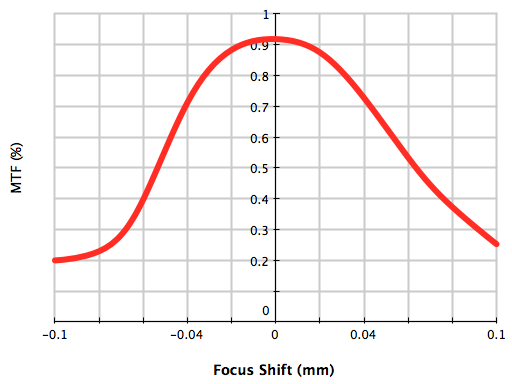

    The next chart is a very interesting one, we plot the effects of back focus (or front focus) on MTF:

    Figure 3: MTF vs. Focus Shift

    This chart examines how MTF is affected when the lens is not perfectly in focus. During MTF testing, it is common to use "focus bracketing". That is, we take pictures of the test chart at several different focus positions, then pick the best one. If we'd plot the results at different focus positions, we get the picture above.

    By the way, this is also how "contrast detect" auto-focus systems work. The contrast detect AF algorithm measures contrast at slightly different focus positions, then moves the focus to the peak contrast position.

    Now I'm going to present some variations of the above charts.

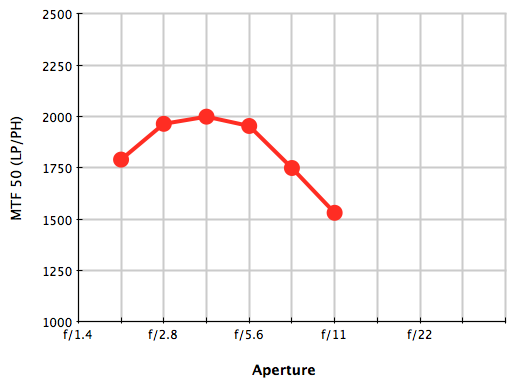

    The first variant is pretty common, we plot MTF 50 resolution vs. aperture (f-stop):

    Figure 4: MTF 50 vs. F-stop

    Lenses are often limited by aberration at wide-open apertures and then by diffraction when stopped-down. By plotting the MTF 50 resolution vs. F-stop, we can find the "sweet-spot" aperture of the lens (which is f/4 for the above lens). This is the aperture where the lens is the "sharpest".

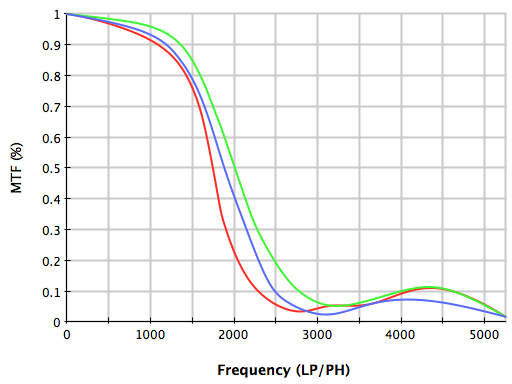

    Another variant is plotting MTF vs. Frequency (as in Figure 2) but analyzing R, G, B wavelengths separately:

    Figure 5: MTF at RGB wavelengths

    This type of chart looks at how the lens design handles single colors (monochromatic light). When a lens is being designed, it would not be unusual to run simulations to predict how the lens will react to R, G, B wavelengths.

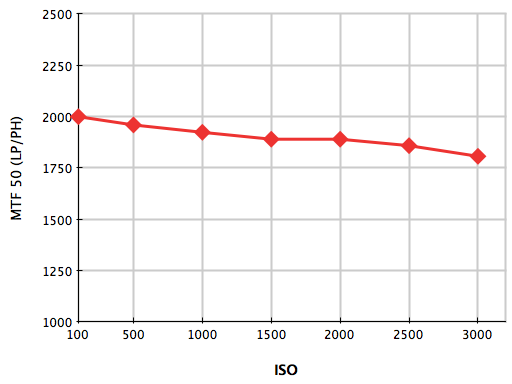

    The last variant I'll illustrate today looks at MTF 50 resolution as a function of ISO:

    Figure 6: MTF vs. ISO

    This one is probably self-explanatory, but I included it here as a reminder that MTF measures the entire system (including the camera's sensor) -- not just the lens.

    As you may appreciate, there are many ways to look at MTF data. There are actually many other types of MTF charts. For example, in biology and medicine, a researcher might plot our eye's MTF vs. Age to see how our vision deteriorates with old age.

    With a better understanding of what MTF really is -- rather than how to decipher a particular chart -- it is possible for us to look at a variety of MTF charts and gain further insights about the equipment which we use everyday.
